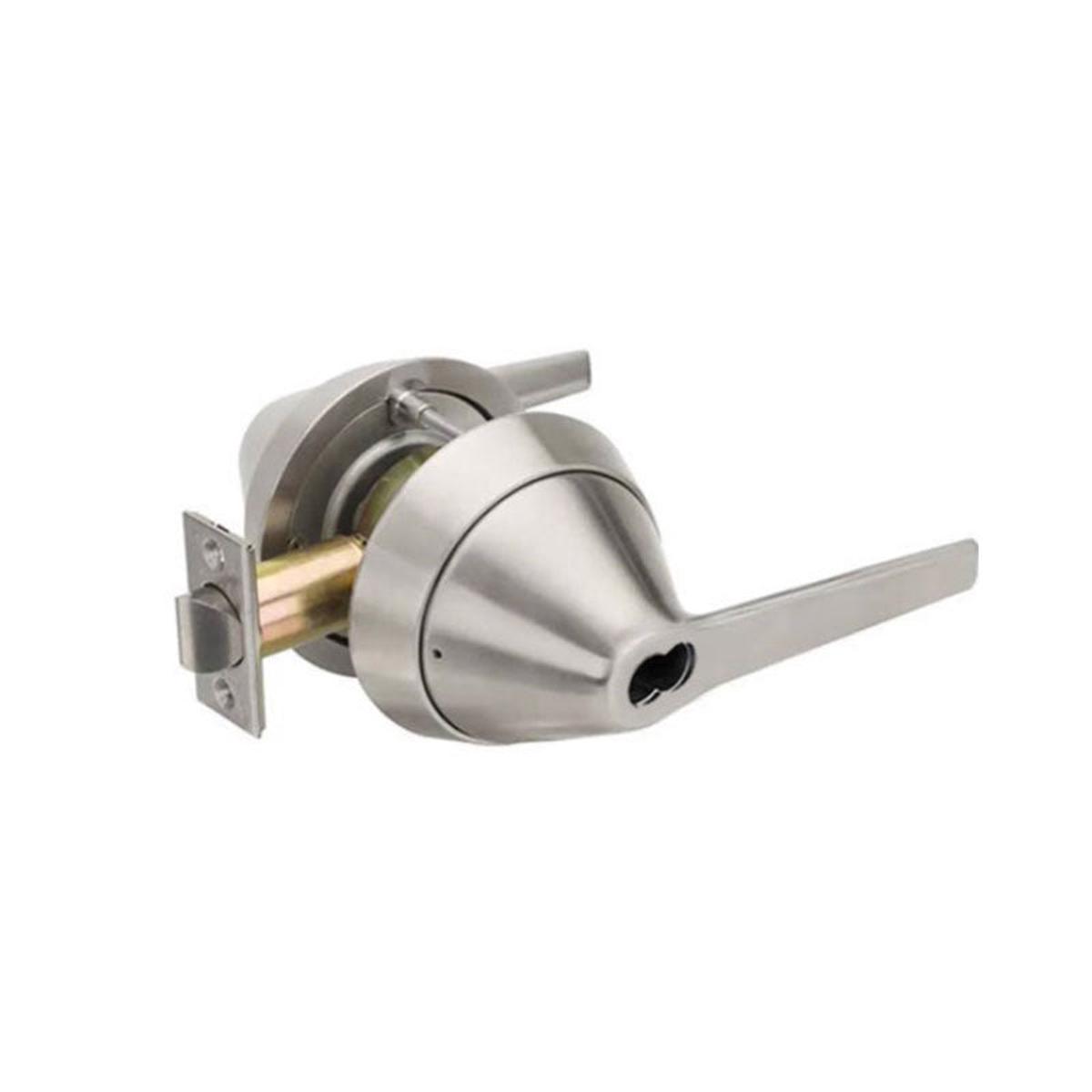

Marks USA 195SSRF/32D-SFIC Anti-Ligature Lever Storeroom Lockset, SFIC...

TheMarks USA 195SSRF/32D-SFIC is a Anti-Ligature Lever Lockset inStoreroom function, that is SFIC Prepped, is Less Core, has a 2 3/4\” Backset, an ASA Strike, and comes in US32D Satin Stainless Steel finish. ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating Backset: 2 3/4 Standard, 2 3/8, 3 3/4, 5 Available Latch #1834, stainless steel nose Levers: Solid cast stainless steel. Levers Rotate up & down freely in locked or unlocked position Levers recessed into solid stainless steel roses eliminating any open gap Roses: Thru-bolted, spring loaded, #10 thru-bolts Strike: #1135, 4 7/8 ASA curved lip strike Door thickness: 1 3/4 /- 1/16 Stainless steel retractor Storeroom Function – ANSI F86 Used for storage rooms, mechanical rooms, and electrical rooms where the outside lever should be locked at all times. Key required for entry Outside lever rigid at all times Deadlocking Latch Latch by lever inside or key outside Product Specs Manufacturer Marks SKU 195SSRF/32D Grade Grade 1 Installation Commercial Origin USA Unit of Measure Each UL Listing Type UL 10C ANSI Number A156.2 Restrictions None BAA Qualified Yes Limited Warranty Lifetime Fire Rated 3 Hours {A} Burglar Rated No ADA Compliance No Finish 630/US32D Finish Description Satin Stainless Steel Finish Family Matte Silver Technical Specs Function F – Storeroom ANSI Function F86 Lever/Knob Design 1955SS-Anti-Ligature Lever Lever/Knob Design Family Anti-Ligature Lever Rose/Escutcheon Design 3 13/16\” Diameter Cylinder Type SFIC Prep Less Core Handing Non-Handed Door Thickness 1 5/8\” to 1 7/8\” Std. Latch Number 1834A Std. Latch Type Dead Latch (Guarded) Std. Latch Backset Dim 2-3/4\” Latch Bore Diameter 1\” Lock Face Size 2 1/4\” x 1 1/8\” Bolt Projection 9/16\” Bore Hole Diameter 2 1/8\” Std. Strike Number 1135 Std. Strike Type ANSI Strike Std. Strike Height 4 7/8\” Std. Strike Width 1 1/4\” Screws Combination Product Type Cylindrical Lock
