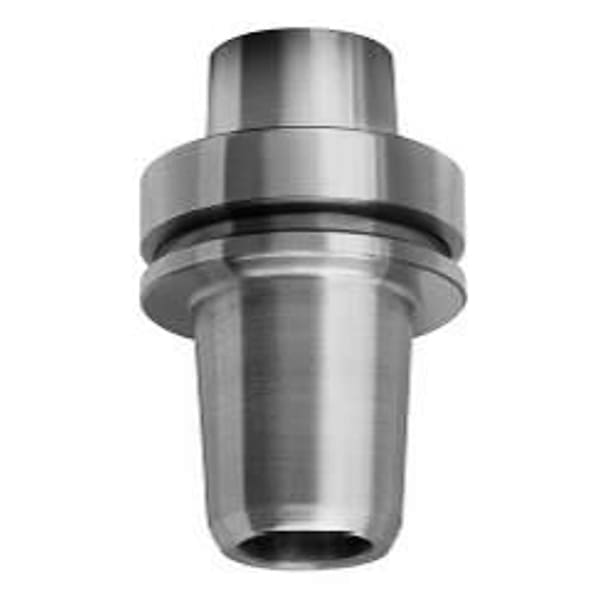

High-precision HSK tool holder with thermal shrinking technology for shank tolerance as per norm EN 847-2. Finely balanced up to 30 000 R.P.M. Short and slim design. Application: Designed for high-precision clamping of tool shanks made from solid carbide or steel, this heat shrink tool holder delivers exceptional clamping force and outstanding runout accuracy of ≤ 0.003 mm (0.0001”). This level of precision is achieved through ultra-accurate manufacturing and the elimination of tolerance stacking typically caused by standard holders, collets, and collet nuts. An ideal solution for use with insert tooling and PCD (diamond) router tools, this holder is best suited for applications where tools remain mounted for extended periods.Note: Not recommended for tools requiring frequent removal. Key Advantages: Exceptional concentricity and repeatability (≤ 0.003 mm) Superior balancing quality for high-speed operation Ideal for HSC (High-Speed Cutting) and HPC (High-Performance Cutting) — especially with PCD and solid carbide tools Compact, slim design for optimal clearance Custom designs and extended-reach versions available upon request The holder is compatible with both right-hand and left-hand rotation tools. We offer free tool mounting when ordered with an insert tool or diamond tooling!
